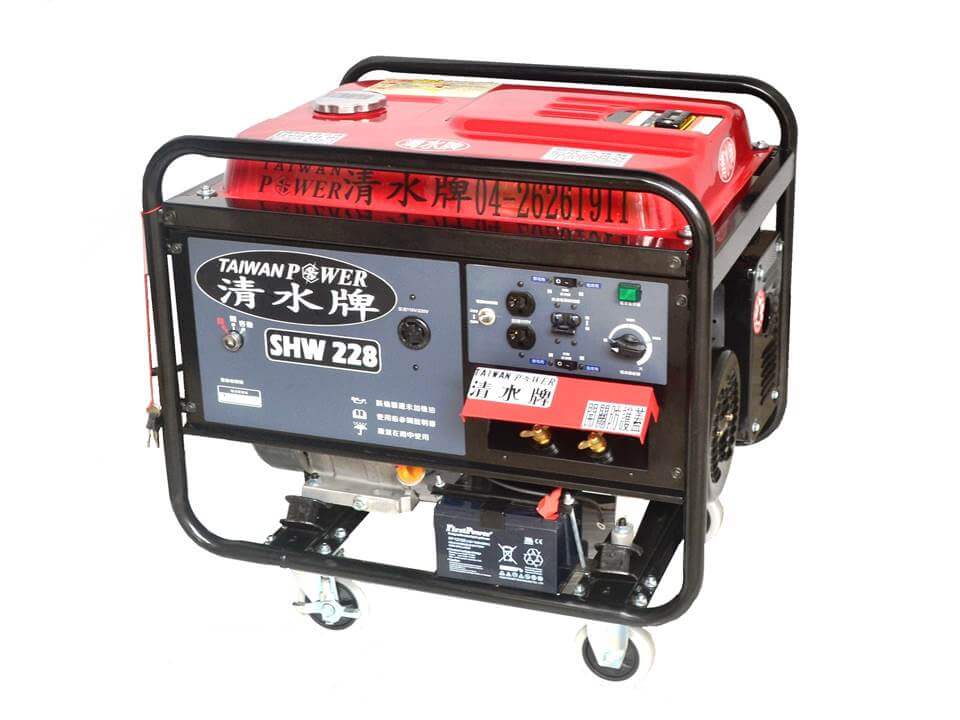

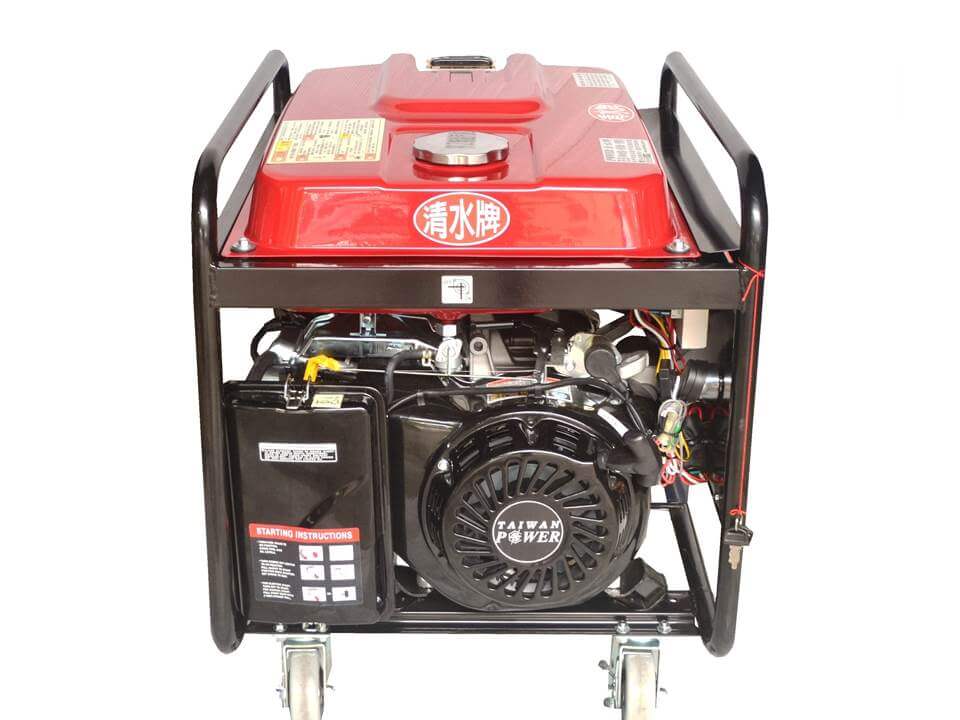

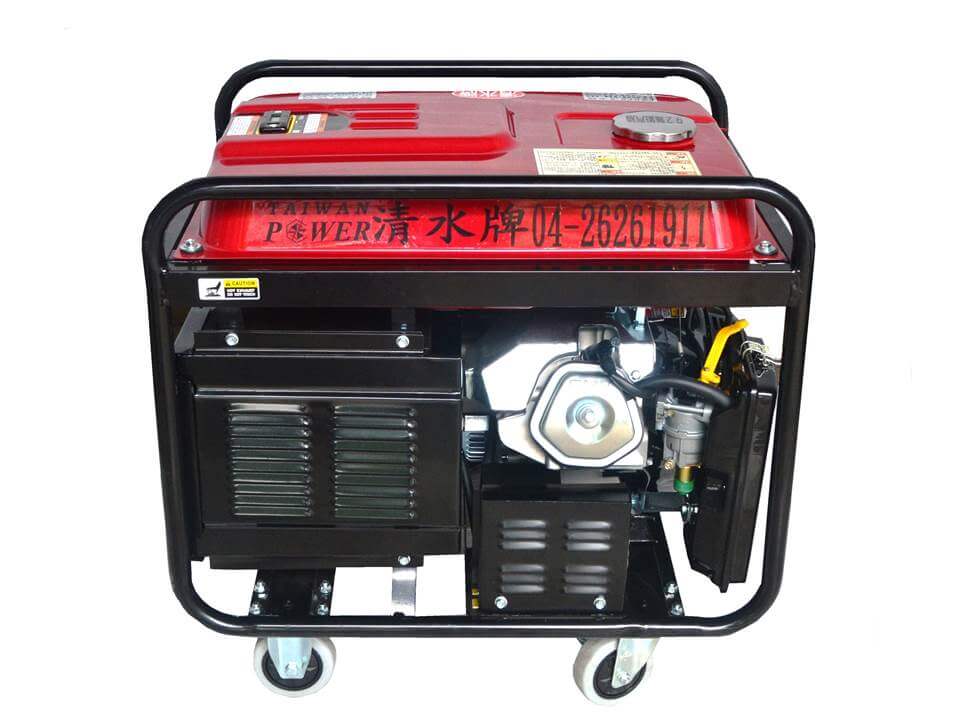

TAIWAN POWER 228A welding generator
Product Feature:
1. Powered by Petrol motor, the safety is more reliable.
2. Adopt magnetic induction control system of independent property right. It can effectively avoid electrical component deterioration and has lower failure rate.
3. Sufficient auxiliary power.
4. With initiating excitation circuit, the problem of magnet loss is avoided.
5. High duty cycle and it can continuously work for 24 hours.
|
228A welding generator |
|
|
Engine model |
· Honda · single-cylinder four-stroke engine |
|
Rated maximum welding current |
200 A |
|
Output Current |
50 ~ 200 A |
|
Thickness (mm) |
1.5 ～ 6.4 mm |
|
· on-load speed |
3500 RPM |
|
· no-load speed |
3780 RPM |
|
rated power |
4 kW |
|
rated frequency |
60 Hz |
|
rated voltage |
220 V |
|
rated current |
17.4 A |
|
Fuel tank |
25 L |
|
· motor starting system |
hand & electrical |
|
size |
680 × 535 × 540 mm |
|
weight |
86 kg |
