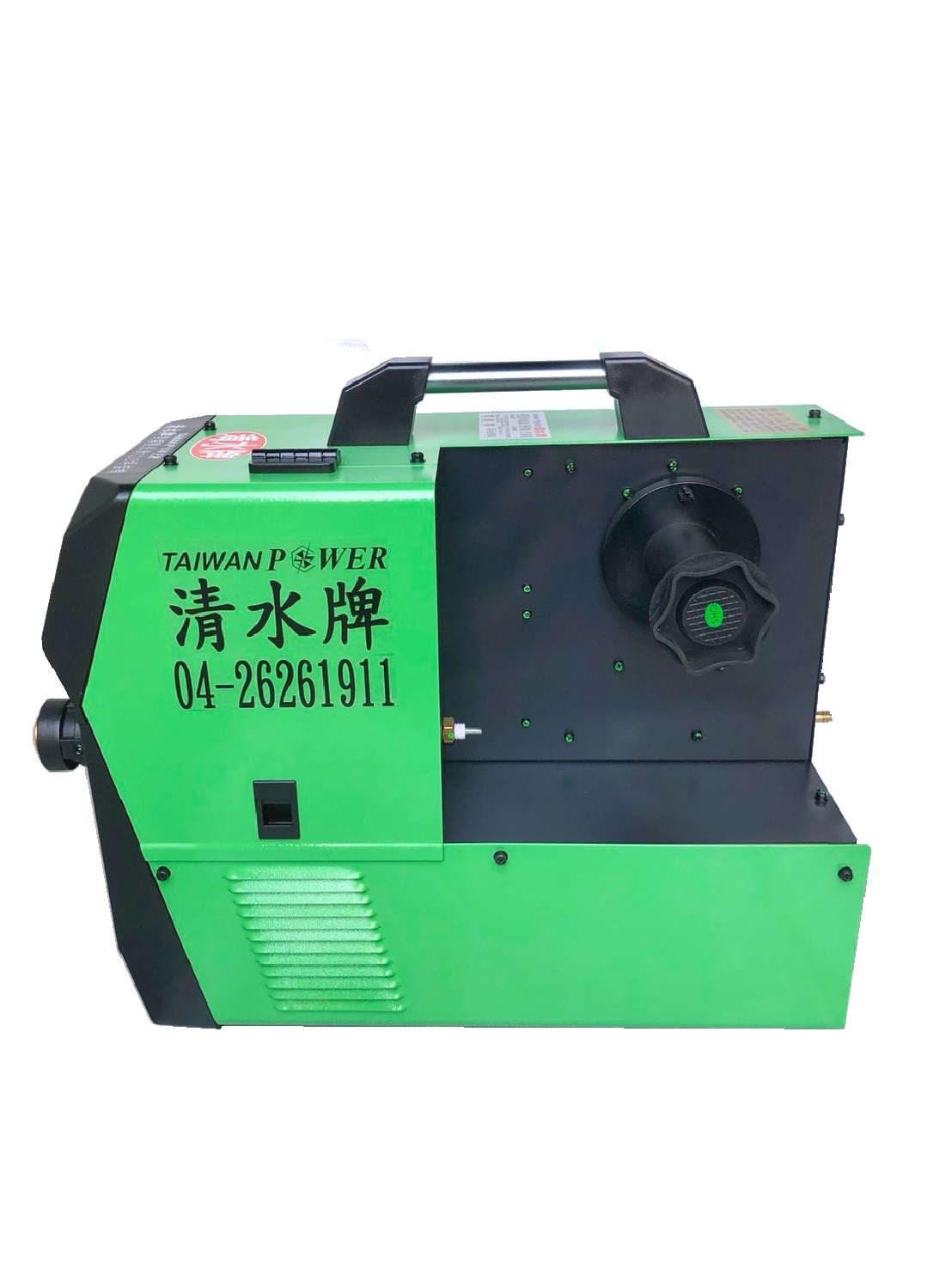

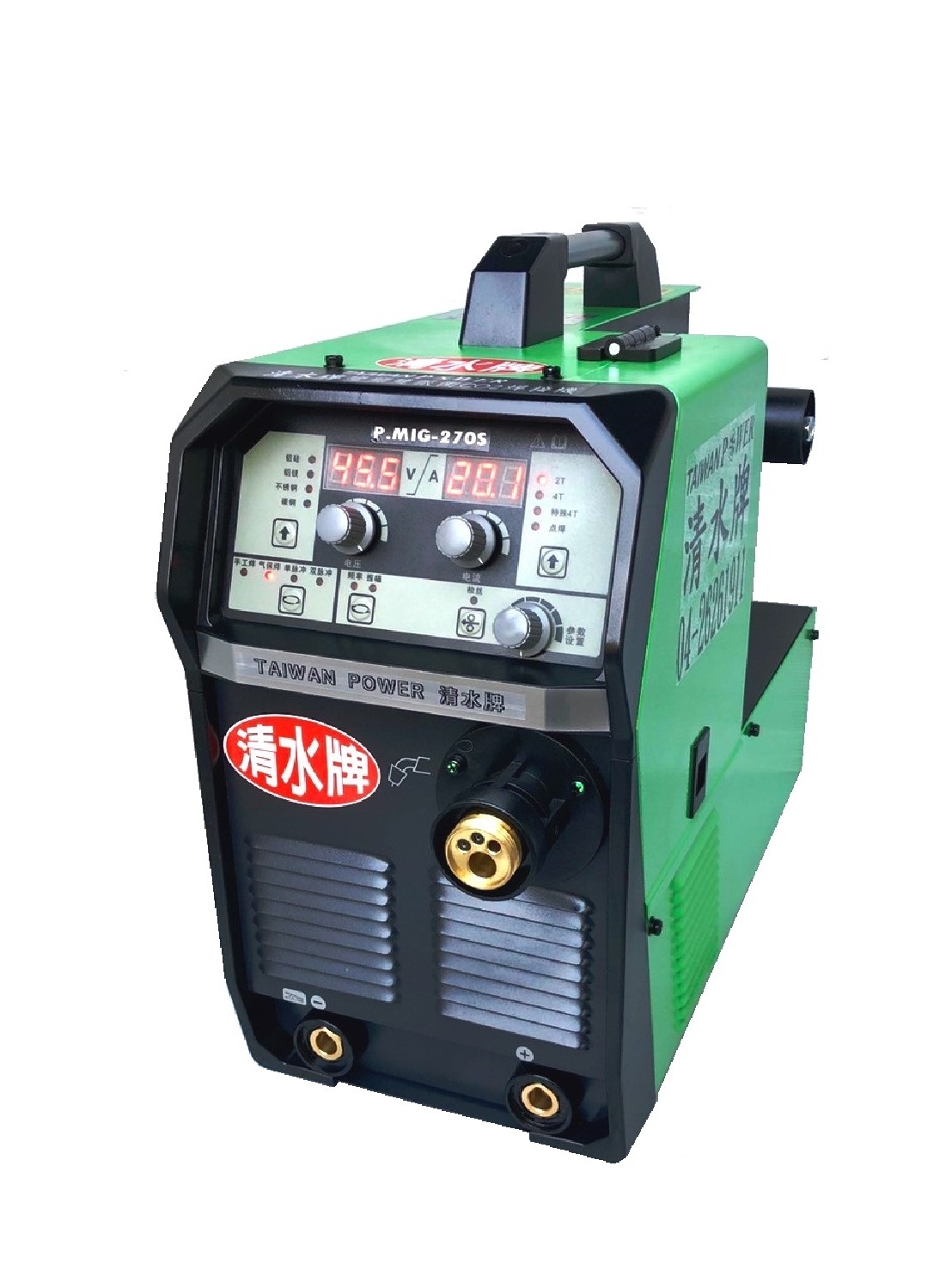

TAIWAN POWER MIG semi-automatic welding machine characteristics
Can be welded aluminum. Aluminum alloy. Low carbon steel. High carbon steel. Stainless steel

Incoming power supply: three-phase 380v, input maximum current 30A, super power saving
Suitable thickness range: 0.3mm~15mm
Recommended thickness range: 0.5mm ~ 8mm
Suitable for wire diameter range: 0.6mm~1.4mm
Recommended wire diameter range: 0.9mm ~ 1.2mm

1. The design is simple, beautiful, atmospheric, small in size, light in weight and easy to carry.
2. Strong voltage adaptability, can be used in single/three-phase 380V plus or minus 10% range
3. Adopt three air shield design to fully protect electronic devices.
4. Adopt current-type PWM pulse width adjustment technology, IGBT inverter technology, high-power fast recovery diode application technology, and make Qingshui P M270 more stable!!
5. With undervoltage, overheat, overcurrent, phase loss protection.
6. The output performance is stable, real-time monitoring of the welding output power, and effective management of the output current.
7. It has good dynamic characteristics and easy arc starting. The arc is stable and the molten pool is easy to control.
8. Digital button editing code adjustment, simple interface, with unified, 2T / 4T, wire detection and other functions; boot automatically restore the last parameter, adjust the side. The one-button control of CO2 gas shielded welding of three kinds of welding wires of 0.6, 0.8, and 1.0 can be normally welded by adjusting one parameter, and has a voltage fine adjustment function.
9. Accurate preset current, easy to use, suitable for workpieces with different thickness, small current for thin plates, large current for thick plates, ensuring welding quality and saving energy
